Name: 1W 2km 433MHz PLC Wireless Monitoring Field Machine
Brand: Lensen
Price: 1 USD

Brand Name : Lensen

Model Number : LS-RTU

Certification : FCC

Place of Origin : China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 6000pcs/month

Delivery Time : 2-7 days

Packaging Details : standard carton

Frequency : 433MHz

Power output : 1W

Input : analog 4-20mA

Distance : 2km

Protocol : RS485 modbus RTU

Control : I/O mirroring

Contact Now

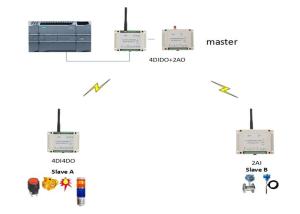

This is a wireless I/O control system

In the control room, user need to monitor slave A's analog signal and control slave B on-off

We use wireless I/O mirroring, no need change PLC program

Please refer this diagram

LS-RAI02

Frequency	433MHz or 450MHz or 470MHz
Power output	100mW(600m),1000mW(3000m)
Products	2AI,4AI,2AO,4AO
Input type	4-20mA or 0-5V or 0-10V
Output type	4-20mA or 0-5V or 0-10V
Resolution ratio	24 bit
Accuracy	±0.02%
Power supply	9-36V DC usually use 24V DC
Interface	RS-485
Channel No.	16ch default, can program via DIP switch
Antenna	Sucker antenna with 1.5m cable
Working temperature	-35℃~+75℃ industrial
Working humidity	10%～90% relative humidity, no condensation
Dimension	2AI,4AI	115×90×40(mm)
	2AO,4AO
Fix way	Standard 3.5 inch industrial DIN guild rail

LS-RDIO0404

Parameter
Power output:	1W (or 100mW version)
Power supply:	9V-30V (usually choose 24V DC or 12V DC)
Control distance:	3km (or 1km version)
Baud rate:	1200bps
Receiving sensibility:	-123dBm@1200bps, -118dbm(9600bps)
Networking
Networking:	Point to point and point to multipoint
Protocol:	Modbus RTU protocol
Port Description
Input:	4 active inputs (passive customize), isolated
Output:	4 passive relay outputs, isolated contact max load AC250V/5A,DC30V/5A (active outputs 0-5V customize)
Communication port	RS485 (wireless RS485 customize)
Current
Transmit current:	<600mA (or 100mA version)
Receiving current:	<50mA (or 20mA version)
General
Frequency:	433MHz, 400, 450, 470 or other band
Channel No:	16 channels, can change via DIP switch
Physical Properties
Dimension:	115×90×40(mm)
Antenna Connector:	SMA,vehicle antenna with 1.5m cable
Temperature:	-35℃~+75℃( industrial)
Mounting method:	Standard 3.5 inch industrial guild rail
